  • All measurements of Quality Parameters such as diameters, taper, length / height, bend and twist and all GD&T parameters are determined by the in built software after crunching the numbers recieved from the LVDT probes. Each program is designed according to the needs of the client and SPC analysis desired.
  • Thousands of readings and reports generated by the software are saved and used whenever needed by the manufacturer, which in turn increases the productivity and gives a quality-conscious client a complete database that can be used as a blueprint for future design and manufacturing alterations.

Software Based Multi Gauging Systems

Software Based Multi Gauging Systems

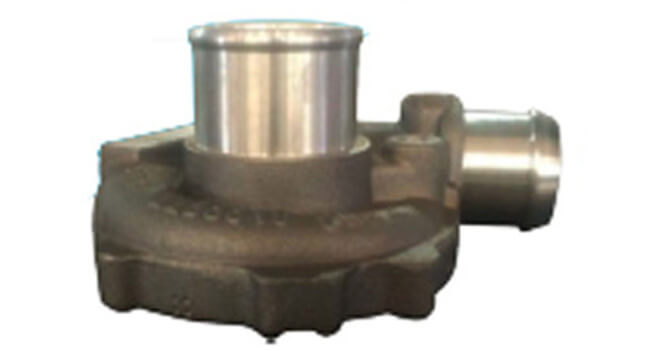

Software Based multi-gauging System for Compressor Housing (1.5 Ltr.)

Software Based Multi Gauging Systems

Customer Name : Alicon cast alloy Limited, Chinchwad
Parameters : 15 Nos.
Parameter Names : inside / outside diameters, heights, distances, flatness, runout, parallelism

Features of Gauging System

  • All parametres covered in software based Manual operation multi-gauging solution
  • User friendly Multi-Gauge operating system
  • Easy for maintenance and fine setting
  • On measurement screen visual vertical bar for each parameters along with color code indication (Green, Yellow, Red)
  • On measurement screen job counter (TOTAL, OK, NOT OK) and job status (OK / NOT OK)
  • Various modes of measurement like CUR, MIN, MAX, TIR, AVG, MIN Selected, MAX Selected, AVG Selected, and TIR Selected
  • Multi parameters checking Data storing facility in system
  • Digital Data acquisition from probe box
  • Data available in Excel format (Date, Time, Operator, Machine, Part, Shift wise)
  • Statical analysis / variable charts (Run Chart, Cp-Cpk, Histogram, x, x bar r,x bar s, pie chart)
  • Multiple Parts registration in software
  • Utilities (shift setting, change login, company name, backup / restore databse)
  • Administrative level authority and user level authority

Key Highlights

  • We will check all parameters on Single multi-gauging system
  • We can store all data in system
  • Faster measurement than other ordinary method
